Flow Measurement
QBar™
Averaging pitot tube for accurate, stable flow measurement with low pressure loss.
Overview
Low pressure loss, economical to install.
The QBar™ is an averaging pitot tube with a relatively small aspect ratio, so it incurs very low pressure loss and is economical to purchase and install, especially in larger pipelines and rectangular ducts.
Retractable QBar™ versions allow insertion and withdrawal from a pipeline without draining the process fluid.
QBar™ sensor design features deliver accurate and stable measurement over a very wide flow range. Compared with other DP devices, the QBar™ creates much less pressure loss, keeping the energy cost of restoring lost pressure to a minimum. Installation is also straightforward, typically requiring only a single hole in the pipe wall.
Sizing & selection with McMenon Solve
Sizing and selection is simplified by use of McMenon Solve, the ultimate tool for DP flowmeter sizing and more, used on-line or off-line.
QBar™ Features
Accurate and stable over a wide flow range.
- Cost effective solution for large pipes
- A wide variety of materials available to suit most applications
- Direct mounting for pressure transmitter reduces installation costs and potential leak points
- Suitable for liquid, gas and steam flow measurement
- Repeatability of measurement 0.1 %
- Lowest pressure loss in the family of DP flow elements (approx. < 1 %)
QBar™ Applications
Proven across the industry spectrum.
- Oil production and refining
- Clean liquids and Gasses
- Steam
- Combined heat and power
- Solar Energy CSP
- Water treatment and distribution
- Gas processing and transmission
- Chemical and petrochemical industry
QBar™ Size Range
Four series, from ¼in to 158in.
- 100 series (inline)
- ¼in to 2in
- 300 series
- 2in to 6in
- 400 series
- 4in to 138in
- 500 series
- 10in to 158in
Larger sizes achievable.

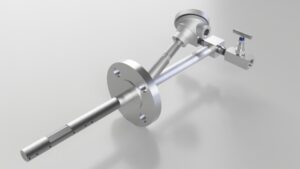

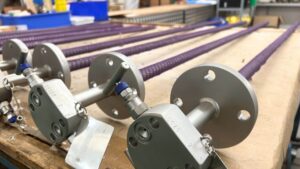

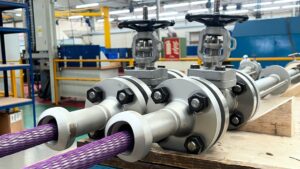

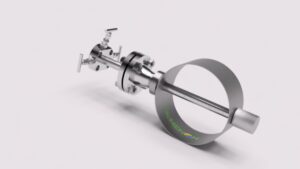

Gallery
The QBar in detail.
Documentation
Data sheets & selection guide
Download the QBar data sheet and the Selection & Practice guide directly, or contact our sales team for help specifying what you need.
Need help specifying QBar™?
Need a QBar™ for your application? McMenon can size the unit and provide a complete specification. Send us your requirements or speak with our team.
