Oil & Gas
Project overview
McMenon supplied 10 McMenon Averaging Pitot Tubes for a major natural gas liquids (NGL) processing project in Saudi Arabia.
The project included NGL fractionation, utilities, storage and export facilities, requiring reliable flow measurement solutions across a range of process applications.
The order comprised 1" Averaging Pitot Tubes for line sizes ranging from 18" to 56", providing a robust flow measurement solution for large-diameter process lines.
Product family
QBar™ Averaging Pitot Tubes
01 / The challenge
The Challenge
The project required a flow measurement solution capable of operating within high-pressure steam applications and across a range of large line sizes.
The instruments needed to provide reliable measurement while also allowing practical access for operation and maintenance. With the Averaging Pitot Tubes installed on lines ranging from 18" to 56", the solution needed to accommodate the requirements of large process systems while providing a suitable means of isolation and retraction.
The application also required measurement capability for both differential pressure and temperature, supporting comprehensive process measurement.
02 / McMenon's solution
McMenon's Solution

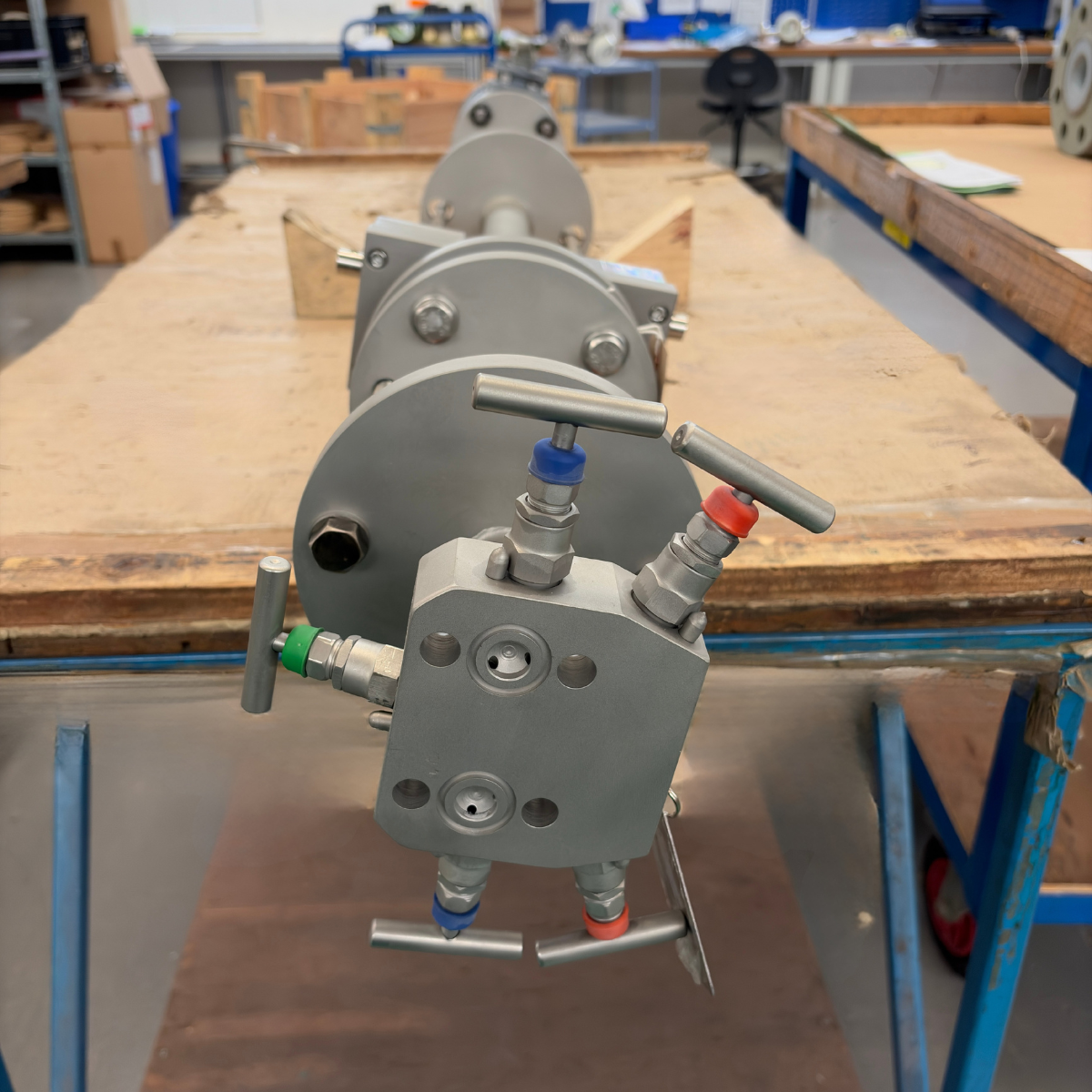

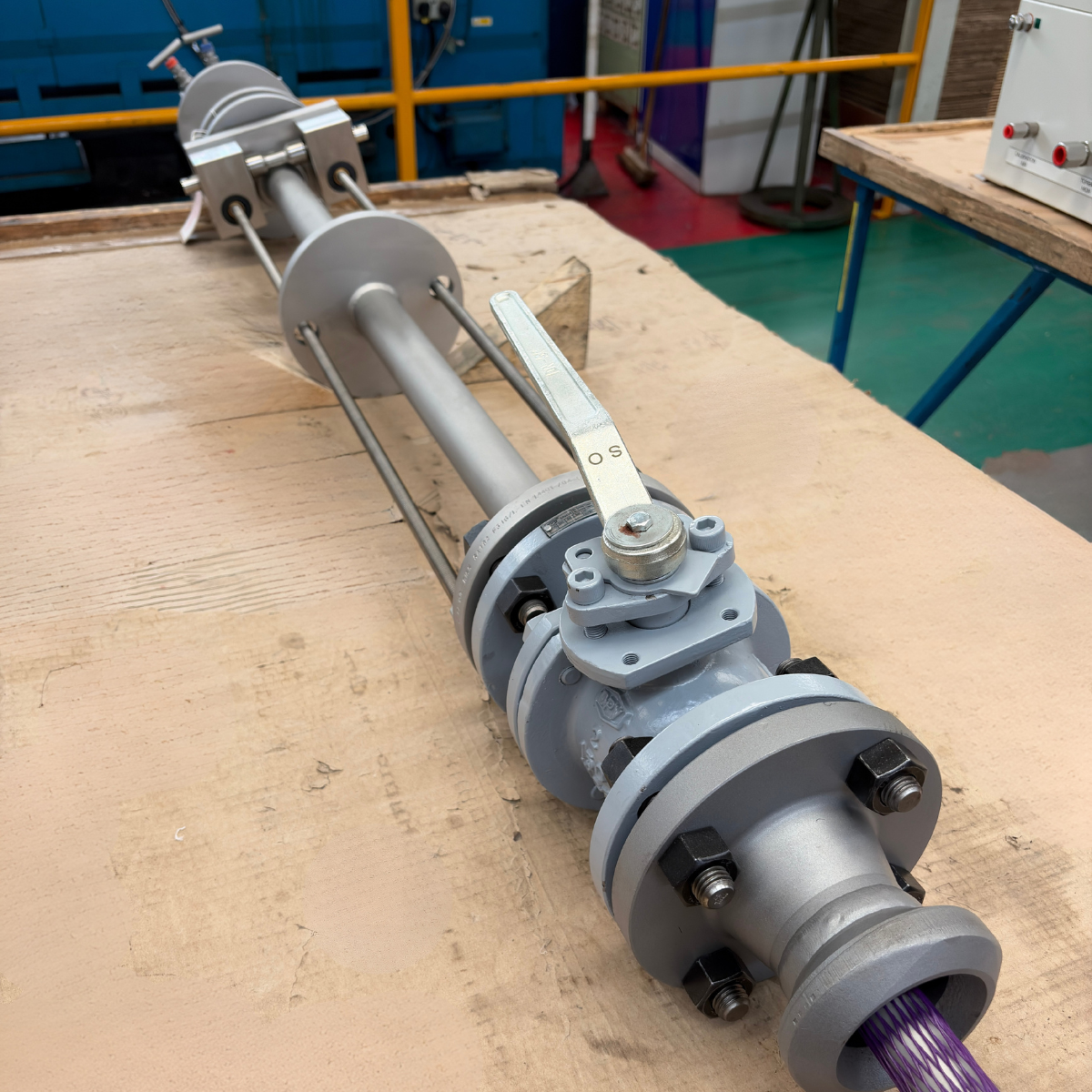

McMenon supplied 10 FPD350 H7 Series High Pressure Retractable Averaging Pitot Tubes, designed specifically for the application.
The 1" Averaging Pitot Tubes feature a dual-grade 316/316L Stainless Steel probe with a 2" Carbon Steel process connection. The gear-operated retractable assembly provides practical operation and maintenance, while a flanged Stainless Steel gate isolation valve provides isolation of the instrument.
The units are designed for connection to remote-mounted transmitters using tapping gate valves and incorporate an integrated temperature element, allowing the instruments to measure both differential pressure and temperature.
The solution was supplied for steam flow measurement across line sizes ranging from 18" to 56".
Project highlights
At a glance
- 10 McMenon Averaging Pitot Tubes supplied
- FPD350 H7 Series High Pressure Retractable design
- 1" Averaging Pitot Tubes
- Suitable for 18" to 56" line sizes
- 316/316L Stainless Steel probe
- 2" Carbon Steel process connection
- Gear-operated retractable assembly
- Flanged Stainless Steel gate isolation valve
- Integrated temperature element
- Designed for steam flow measurement
- Capability to measure differential pressure and temperature
03 / Project result
Delivering High-Pressure Flow Measurement Solutions
McMenon’s expertise in Averaging Pitot Tube technology enables the design and manufacture of solutions for demanding flow measurement applications across the energy and process industries.
For this major NGL processing project in Saudi Arabia, the FPD350 H7 Series High Pressure Retractable Averaging Pitot Tubes combine robust materials, practical retractable design and integrated temperature measurement to provide a reliable solution for steam flow measurement across large-diameter process lines.
Engineered for demanding applications. Built for reliable measurement. Measurement with Confidence.
Project imagery
The project in focus
Select an image to open it at full size.
