Paddle-type plates
Square edged, quarter circle/conical, and eccentric designs.
Flow Measurement
Orifice Plates
McMenon have an orifice plate, union or carrier for all orifice applications.
Overview
The simplest of the DP flow measurement devices.
Orifice plates are the simplest of the DP flow measurement devices. Inexpensive to replace and available in a range of materials; making them an ideal choice for applications where permeant pressure loss is not a significant factor.
Devices based on orifice plates remain one of the best selling flow metering technologies. As well as measuring flow, they are used to restrict the flowrate to a certain value or to reduce the pressure at a certain flowrate.
The technology is well-understood and thoroughly proven and is available from McMenon in a wide range of designs to suit most applications. From simple plates to metering runs, McMenon have an orifice plate, union or orifice carrier for all orifice applications – simple flow measurement, flow restriction or pressure reduction.
The Range
The orifice plate range includes.
RTJ plates
With male or female process connections.

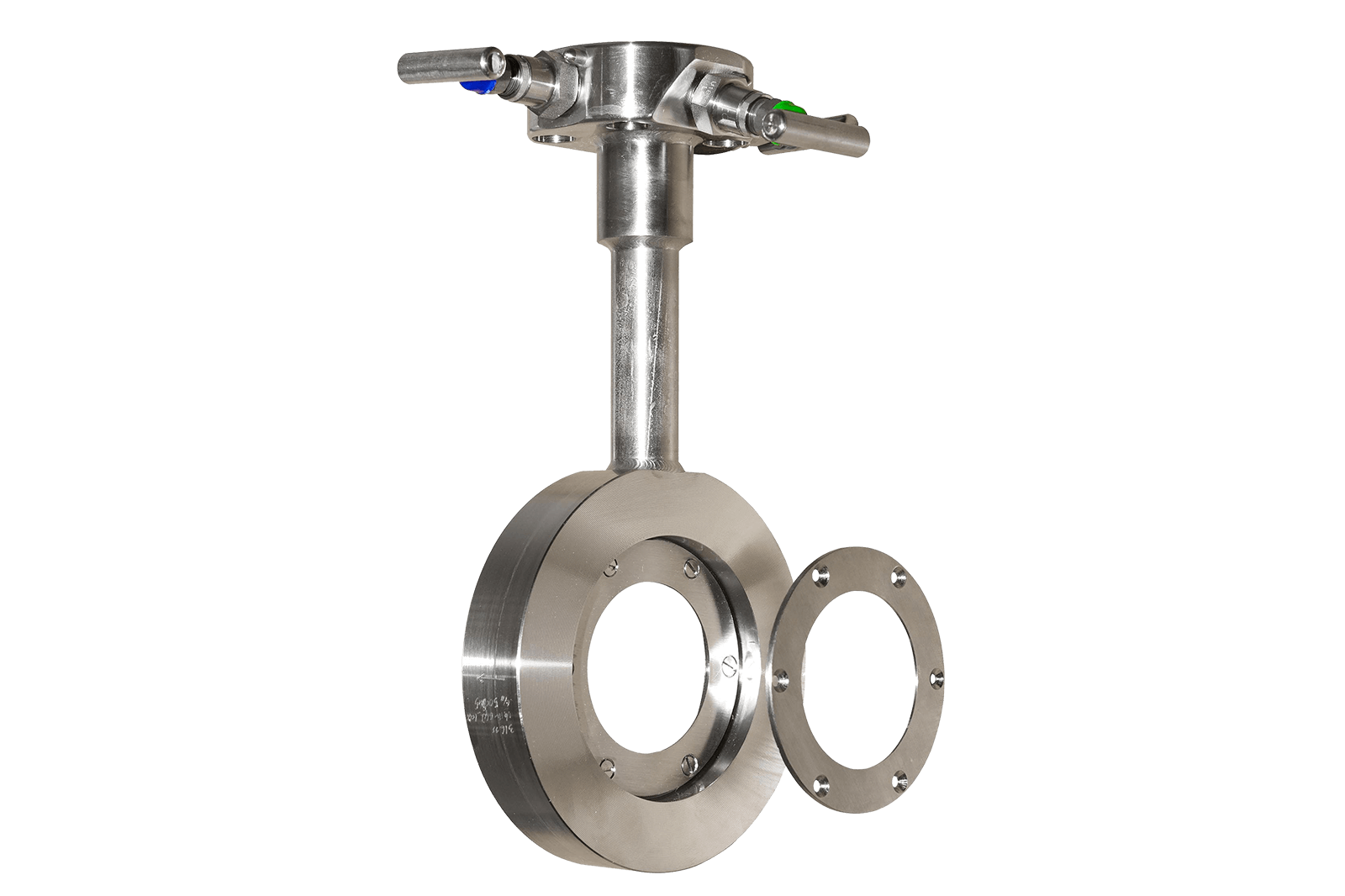

Orifice carriers
With integral tapping connections.
Orifice metering runs
With upstream/downstream pipe sections.

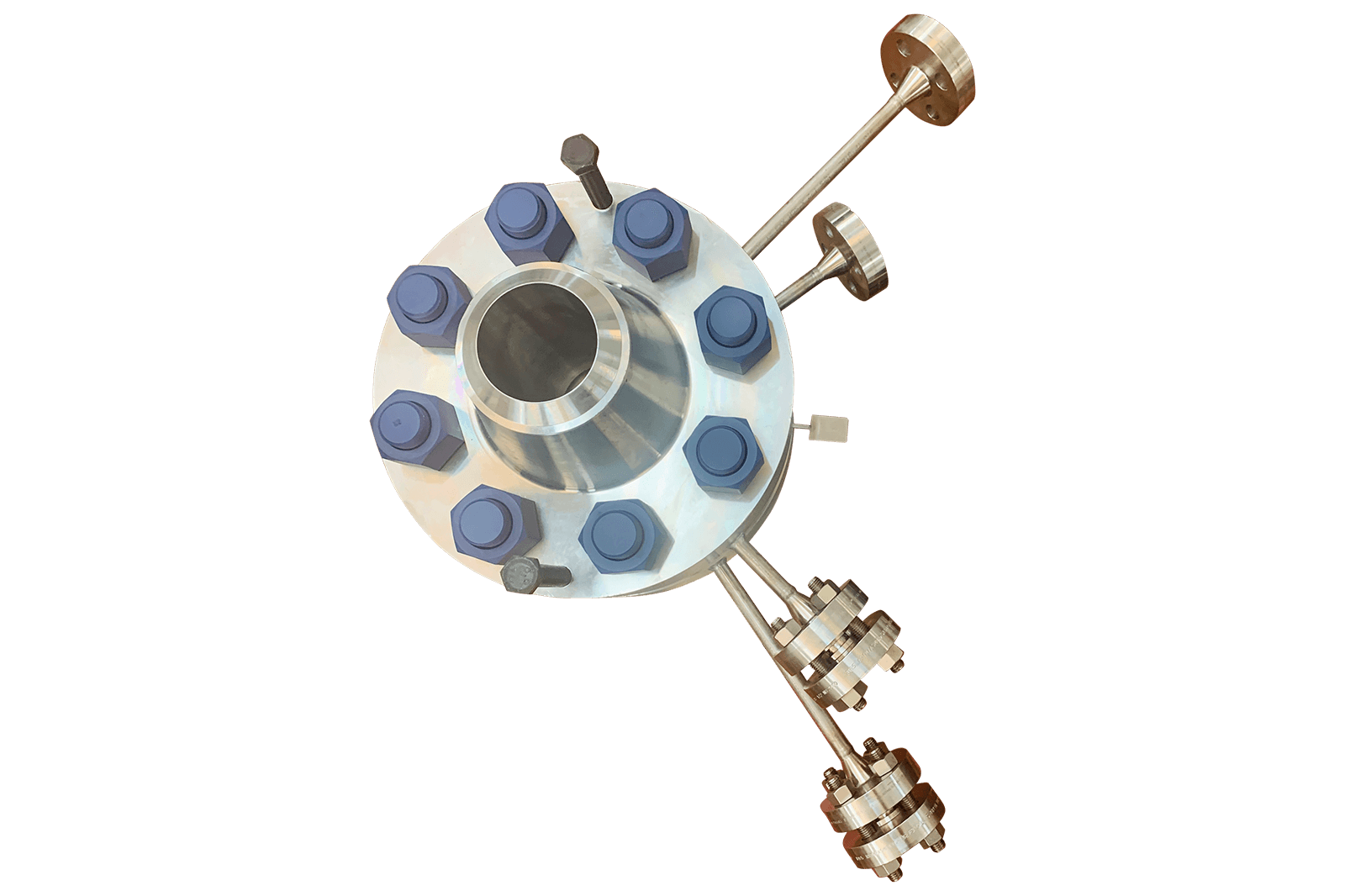

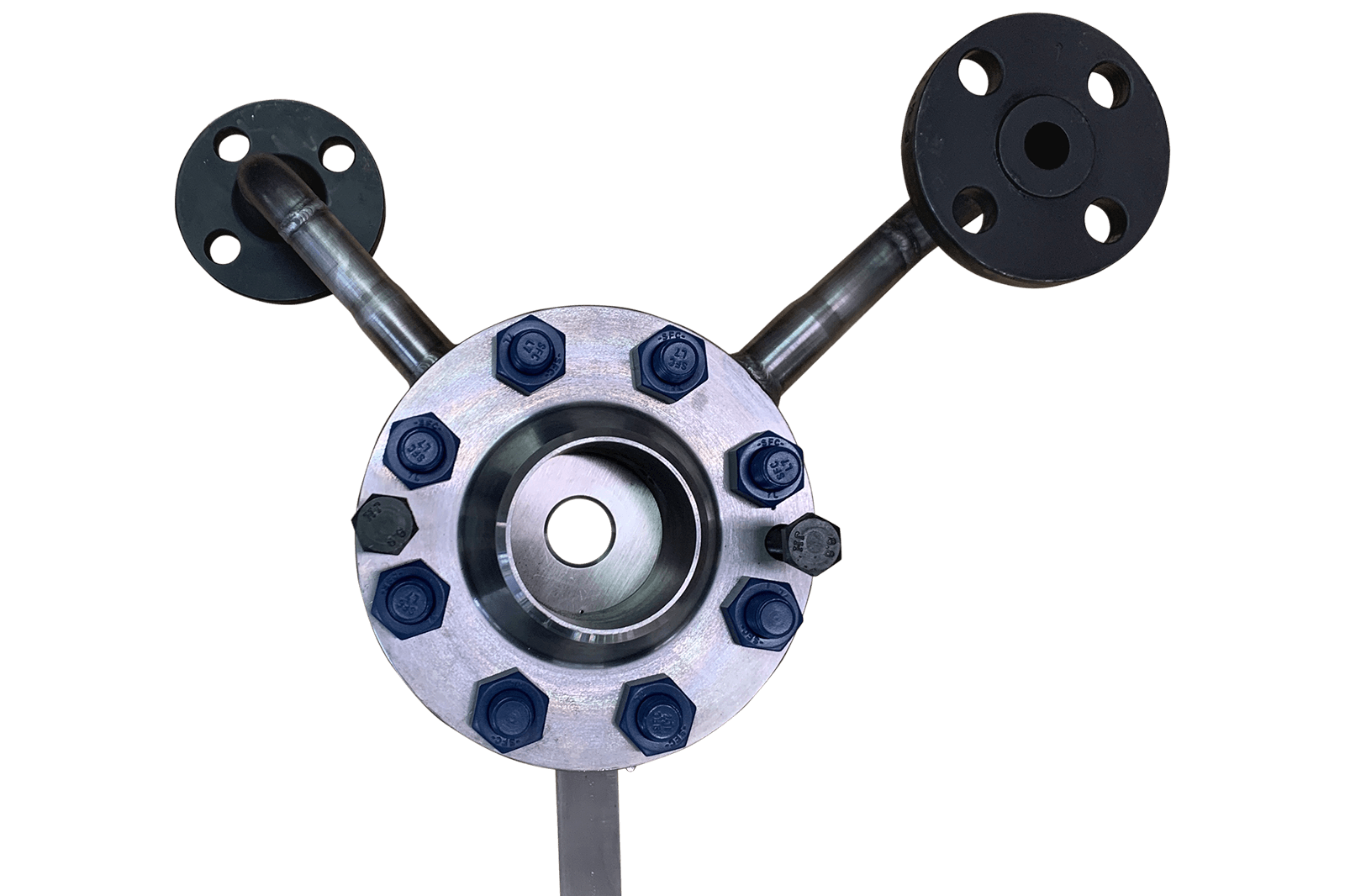

Flanged Orifice Unions
Complete orifice flange assemblies.
Restriction orifice plates
For flow restriction and pressure reduction duties.
Sizing & selection with McMenon Solve
Sizing and selection is simplified by use of McMenon Solve, the ultimate tool for DP flowmeter sizing and more, used on-line or off-line and available to download now.
Special Features
Proven, precise, well understood.
- Max. operating temperature and pressure limited by material and flange
- Suitable for liquid, gas and steam flow measurement
- Latest Specification Vertical Machining Centre (VMC)
- Accuracy ≤ ±0.5 % of actual flow rate
- Repeatability of measurment of 0.1 %
Applications
Across every process industry.
- Power generation
- Oil production and refining
- Water treatment and distribution
- Gas processing and transmission
- Chemical and petrochemical industry
Pipeline Size Range
From 0.5in up to 42in

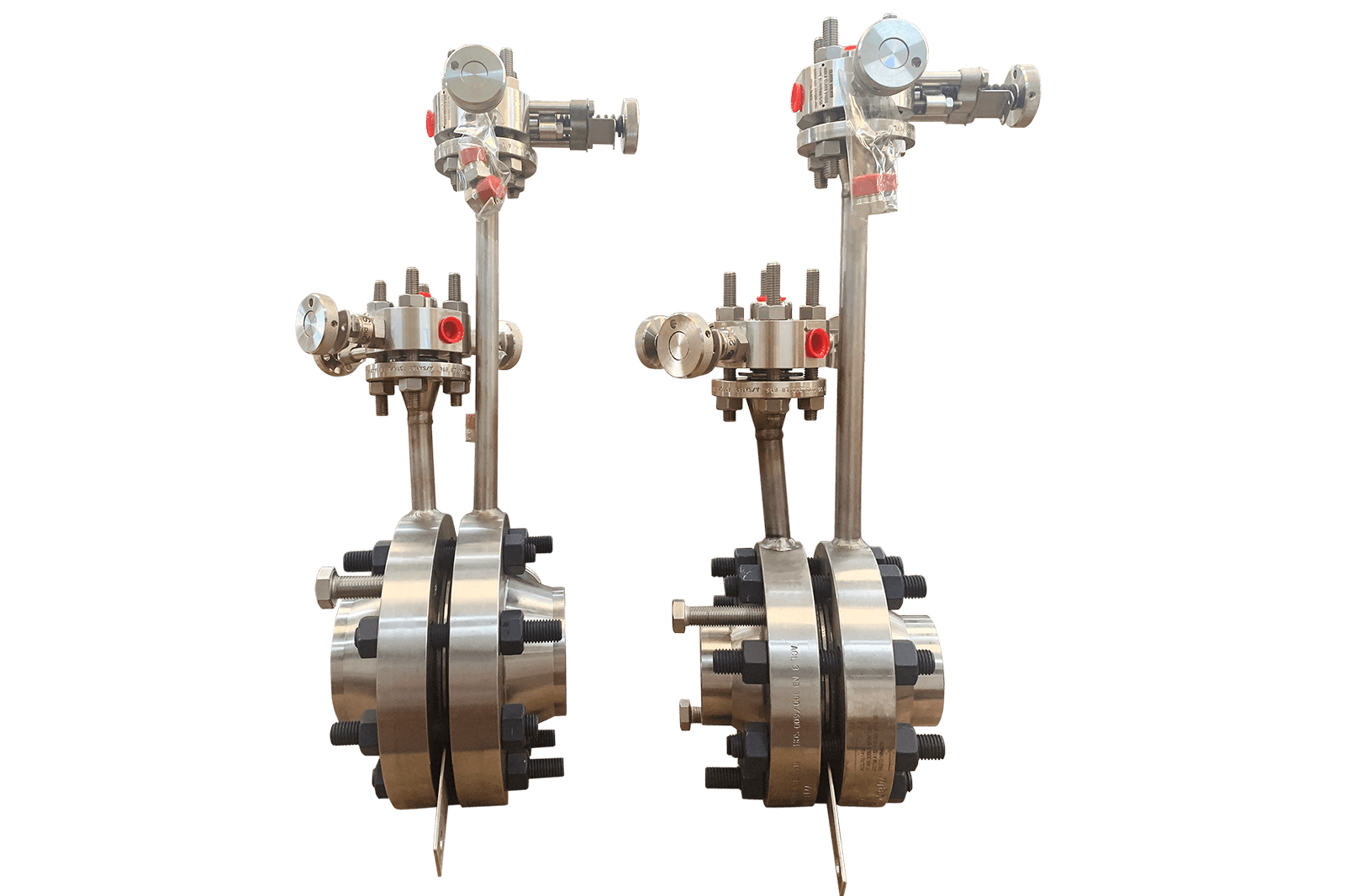

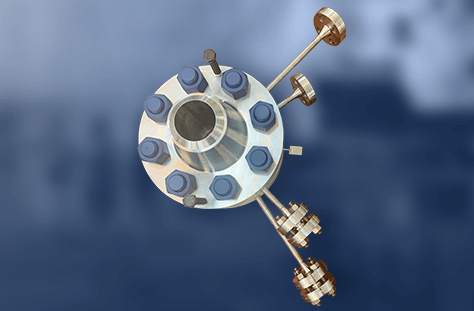

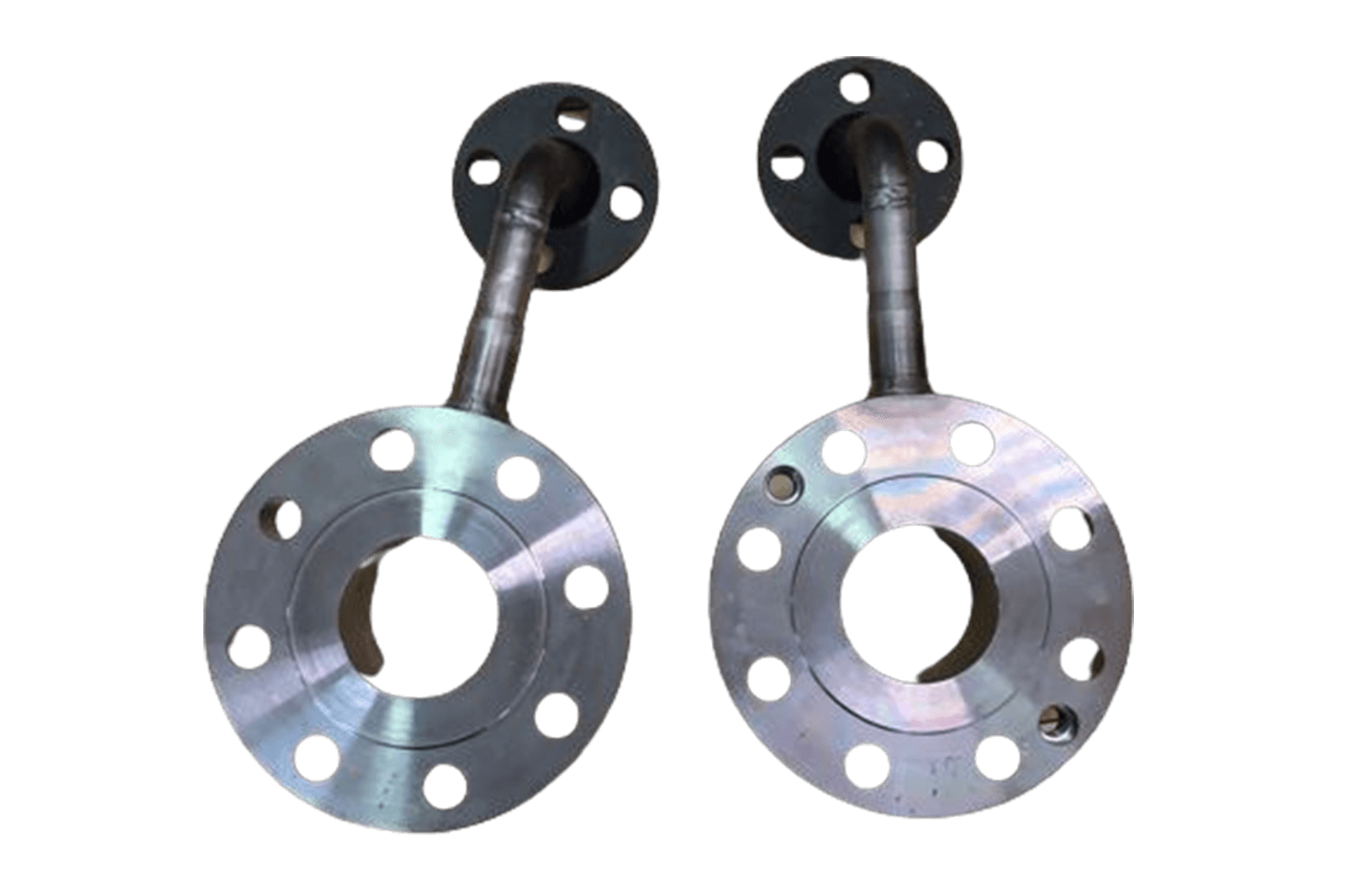

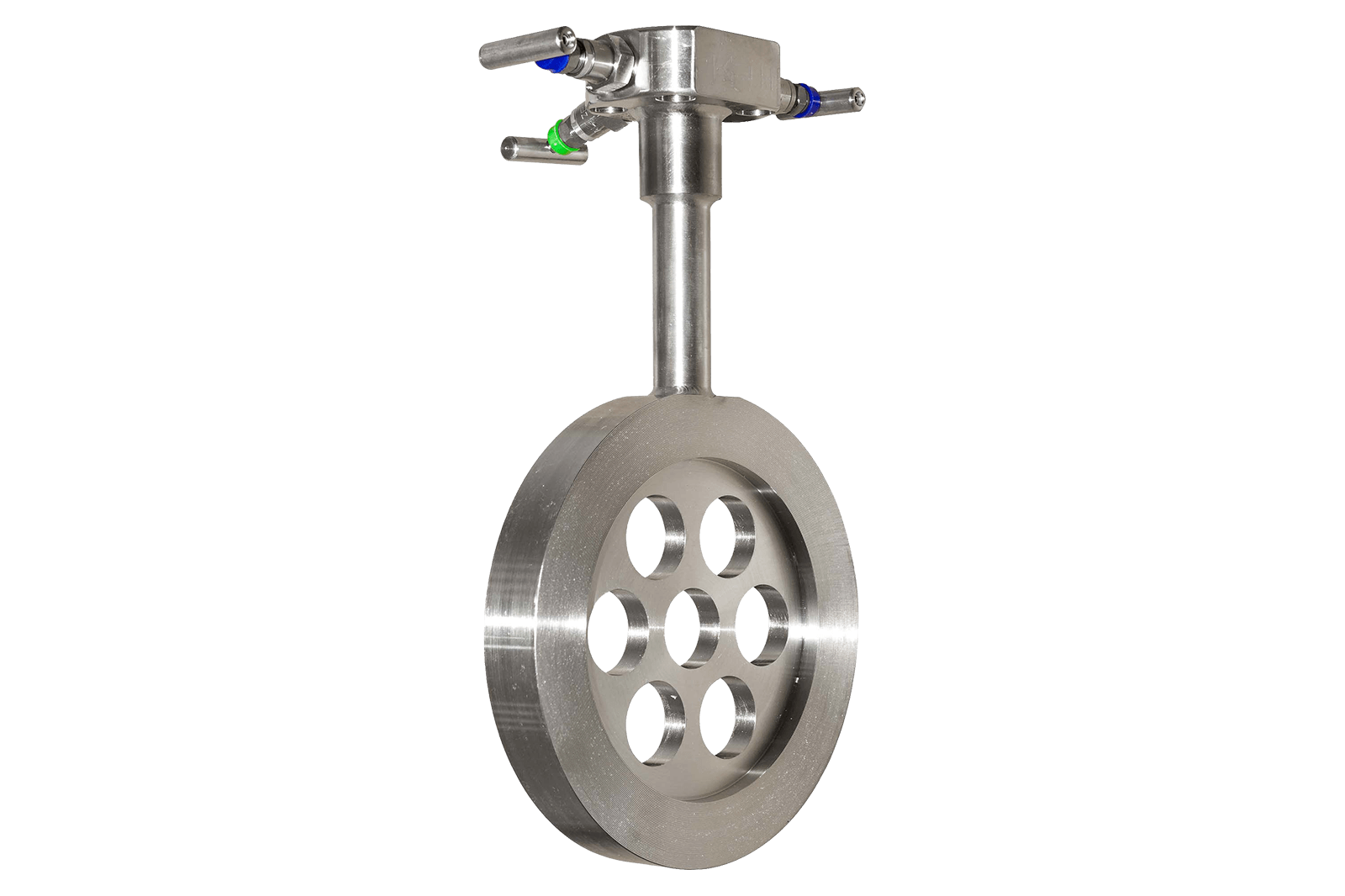

Gallery
Plates, carriers and assemblies.
Documentation
Data sheets & selection guide
Download the orifice plate data sheets and the Selection & Practice guide directly, or contact our sales team for help specifying what you need.
Need help specifying?
Need a DP flowmeter for your application? McMenon can size your flowmeter and provide a complete specification. Send us your requirements or speak with our team.
