Flow Measurement
QBar™ Averaging Pitot Tube
Accuracy and stability, proven across the industry spectrum.
Overview
Low pressure loss, economical to install.
Being insertion devices with a relatively small aspect ratio, Pitot Tubes incur a very low pressure loss and are also very economical both to purchase and install, especially in larger pipelines and rectangular ducts.

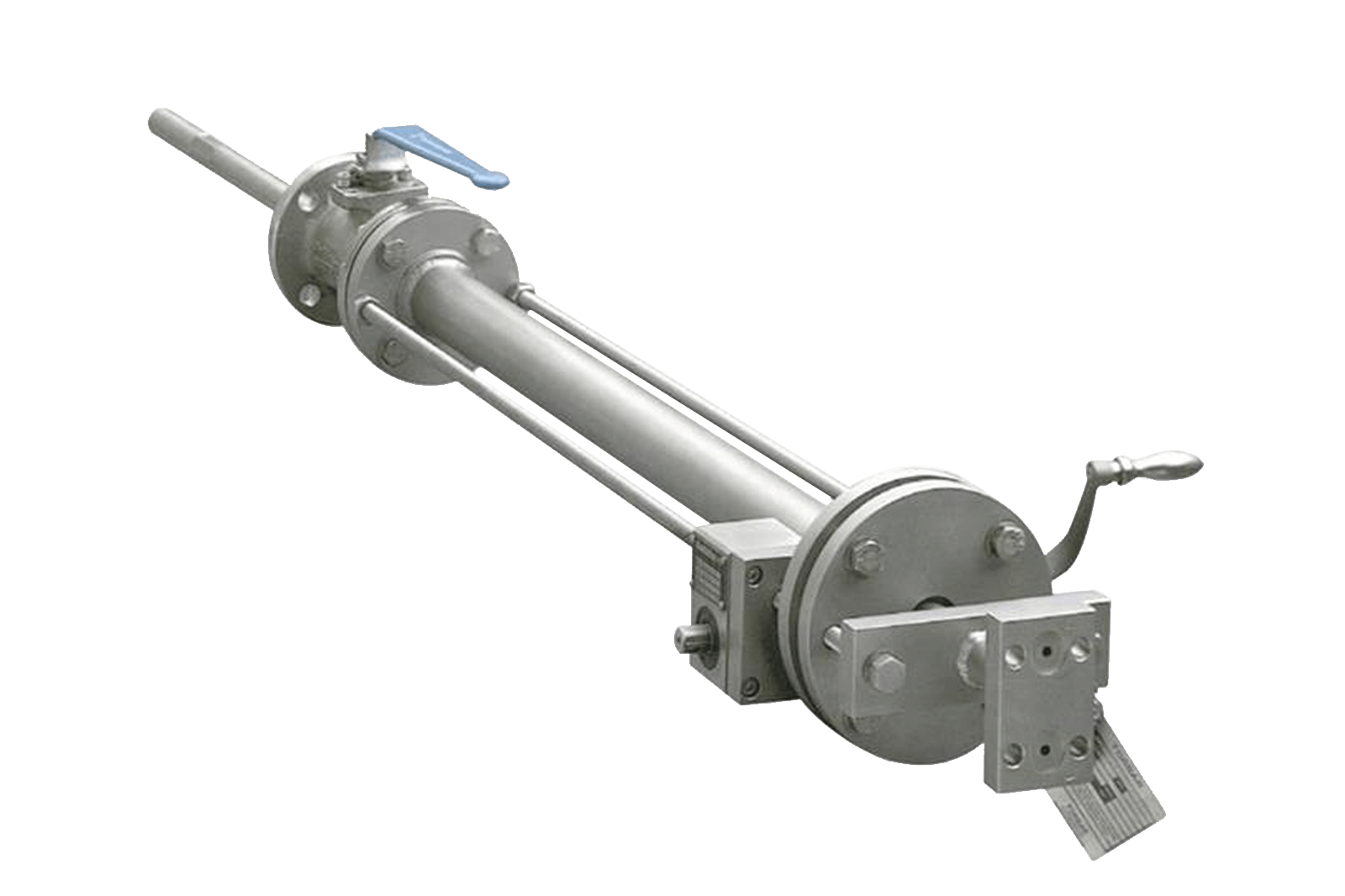

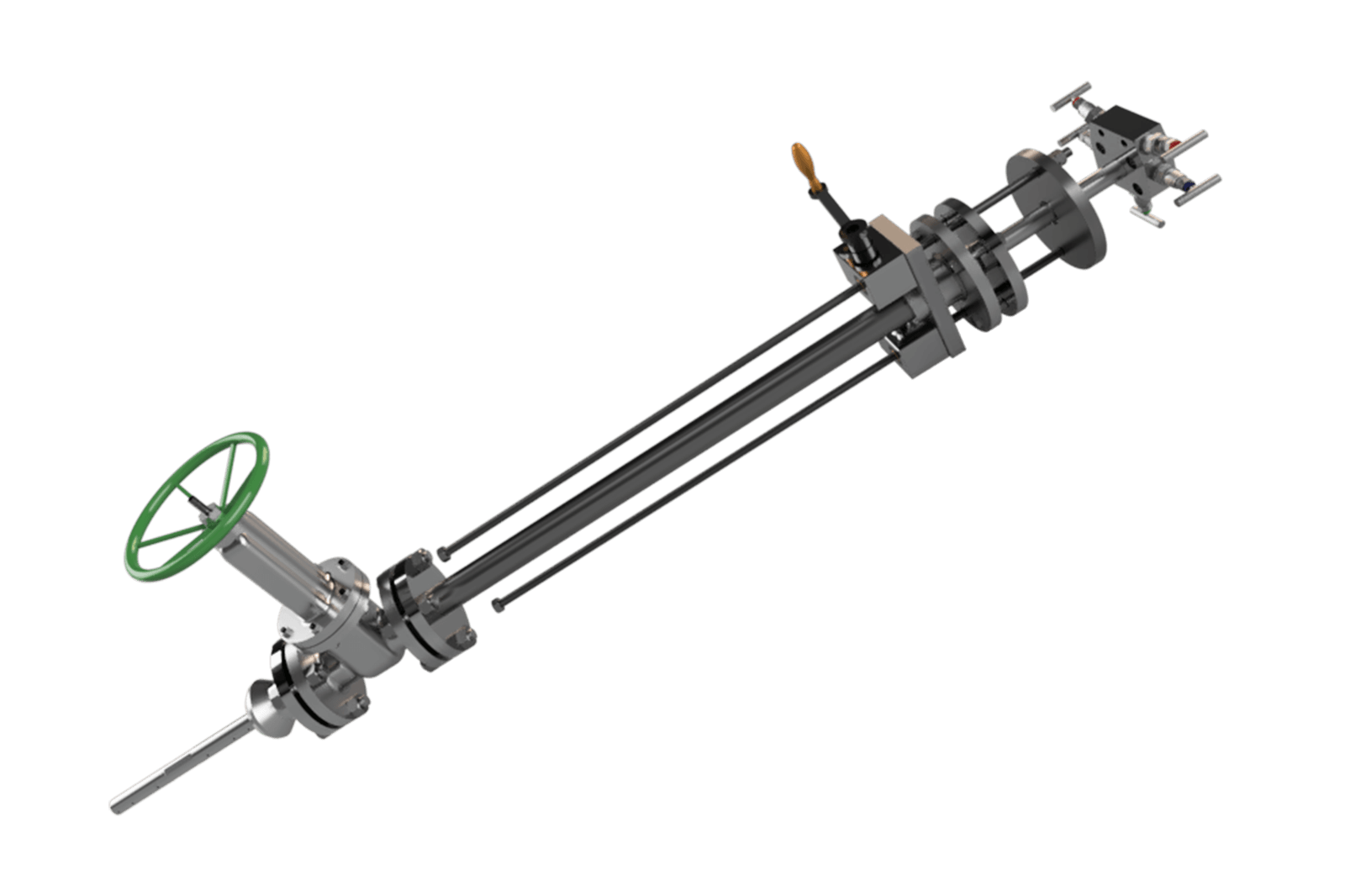

Pitot Tubes are also available in retractable versions, allowing insertion and withdrawal from a pipeline without draining the process fluid.

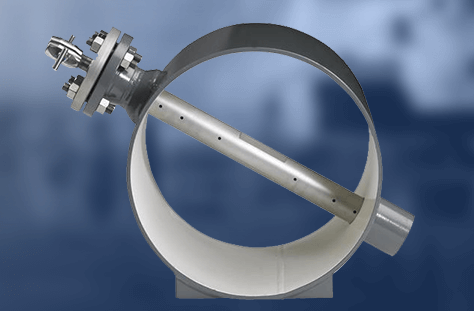

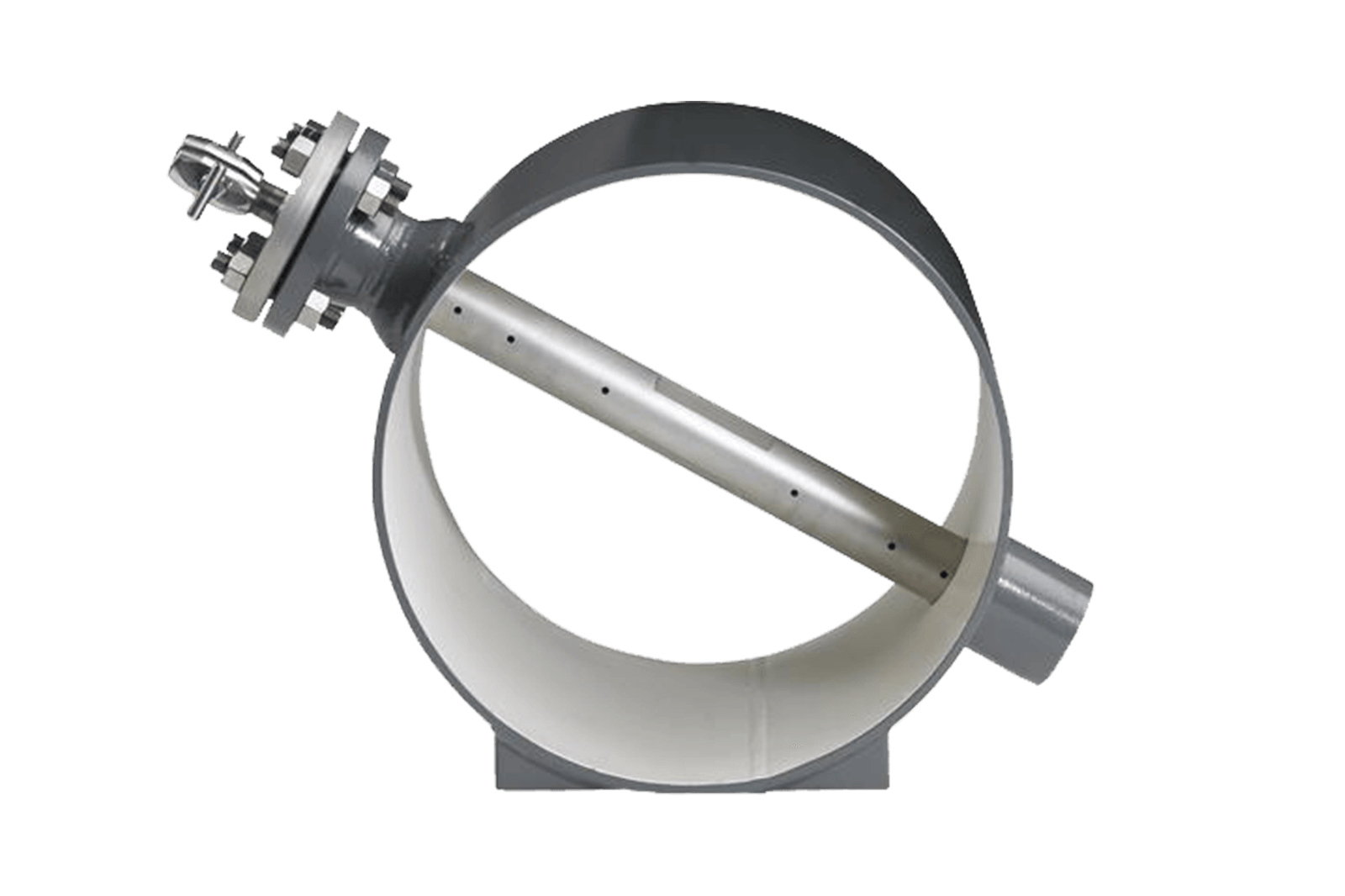

Pitot Tubes have unique sensor design features, offering more accurate and more stable measurement over a very wide flow range. Pitot Tubes create a pressure loss many times lower than that of other DP devices, meaning that energy costs incurred in restoring the lost pressure are minimal. Installation is also much simpler as it typically only requires a single hole in the pipe wall.
Sizing & selection with McMenon Solve
Sizing and selection is simplified by use of McMenon Solve, the ultimate tool for DP flowmeter sizing and more, used on-line or off-line.
Special Features
Accurate and stable over a wide flow range.
- Cost effective solution for large pipes
- A wide variety of materials available to suit most applications
- Direct mounting for pressure transmitter reduces installation costs and potential leak points
- Suitable for liquid, gas and steam flow measurement
- Repeatability of measurement 0.1 %
- Lowest pressure loss in the family of DP flow elements (approx. < 1 %)
Applications
Proven across the industry spectrum.
- Oil production and refining
- Clean liquids and Gasses
- Steam
- Combined heat and power
- Solar Energy CSP
- Water treatment and distribution
- Gas processing and transmission
- Chemical and petrochemical industry
Pipeline Size Range
Four series, from ¼in to 158in.
- 100 series (inline)
- ¼in to 2in
- 300 series
- 2in to 6in
- 400 series
- 4in to 138in
- 500 series
- 10in to 158in
Larger sizes achievable.
Gallery

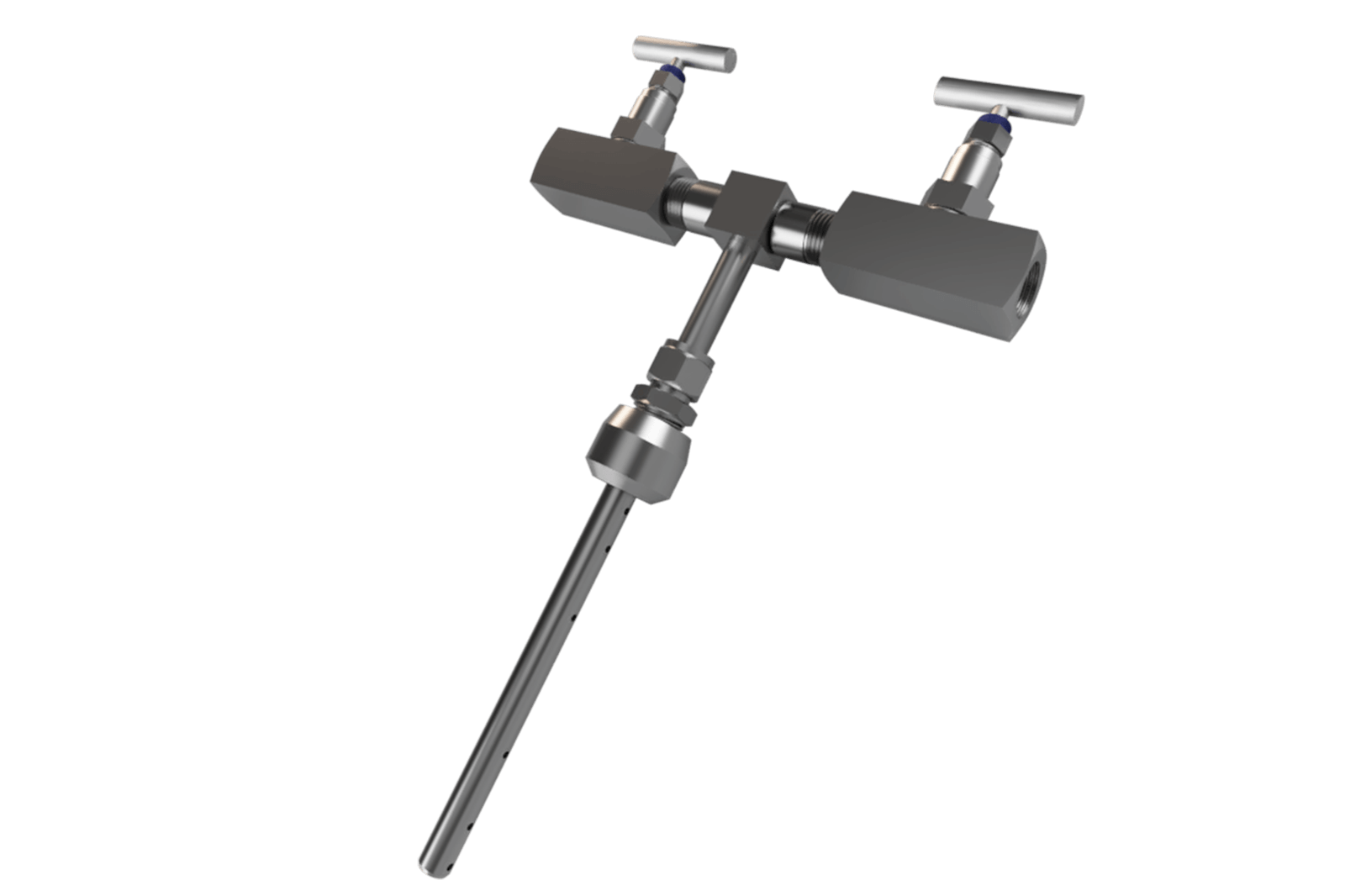

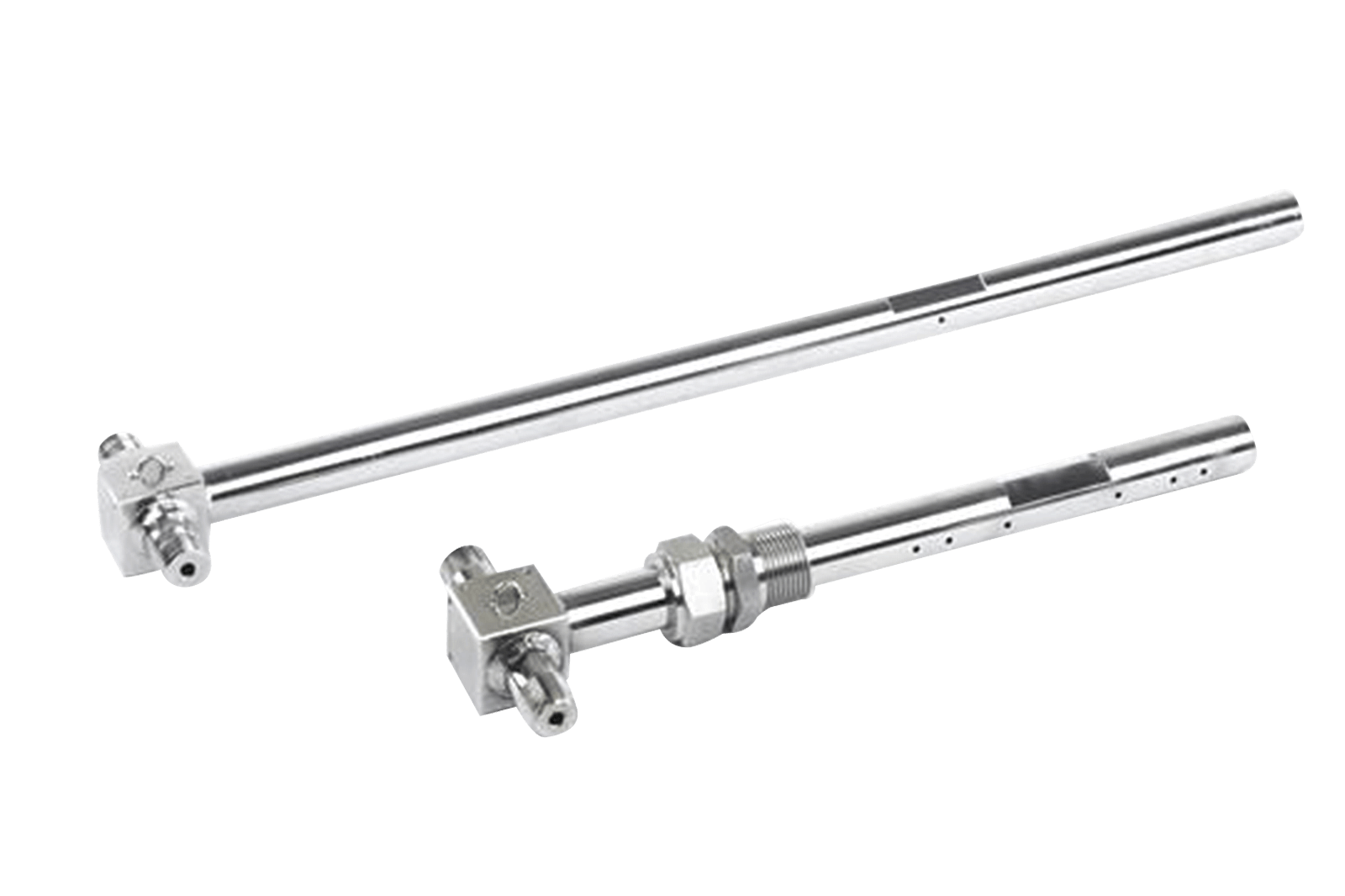

The QBar in detail.
Documentation
Data sheets & selection guide
Download the QBar data sheet and the Selection & Practice guide directly, or contact our sales team for help specifying what you need.
Need help specifying?
Need a DP flowmeter for your application? McMenon can size your flowmeter and provide a complete specification. Send us your requirements or speak with our team.
