Flow Measurement
Subsea Venturi Meters
Subsea flow solutions – proven at extreme conditions.
Overview
Engineered for the seabed.
McMenon design and manufacture Venturi Tubes for Subsea applications.
The ever-increasing depth of oil and gas discoveries has compelled the industry to move away from offshore platforms and towards seabed operations, with equipment mounted directly onto or near the wells themselves.
And in the battle against climate change, these meters are ideal to measure carbon dioxide streams being injected back into depleted oil and gas wells. Subsea measurement will be vital to ensure safe and reliable sequestration.
McMenon’s Subsea Venturi meters are designed to operate in this environment. Used at high pressures and low water depths the units are design and manufactured in strict compliance with API 6A and API 17D.
Sizing & selection with McMenon Solve
Sizing and selection is simplified by use of McMenon Solve, the ultimate tool for DP flowmeter sizing and more, used on-line or off-line and available to download now.
Special Features
Built to API 6A and API 17D.
- High pressure operation
Pipeline Size Range
Typically 2in to 10in
Larger sizes accommodated.
Applications
Injection and CCUS duties.
- MEG Injection (Mono-Ethylene Glycol) and MEG CDU (Control Distribution Unit) meters
- Water injection measurement
- Gas Lift measurement
- Carbon dioxide injection meters for CCUS
Gallery

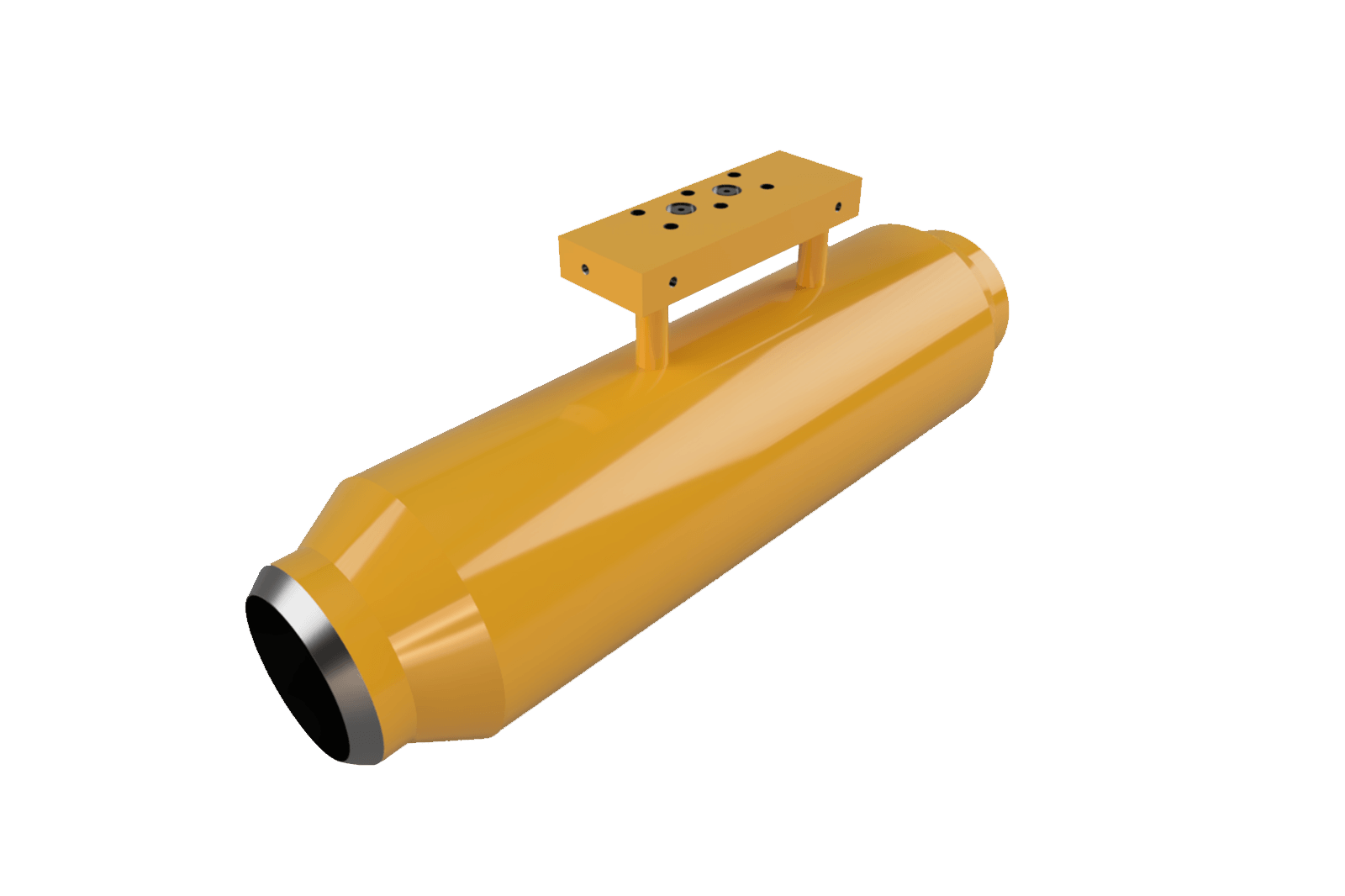

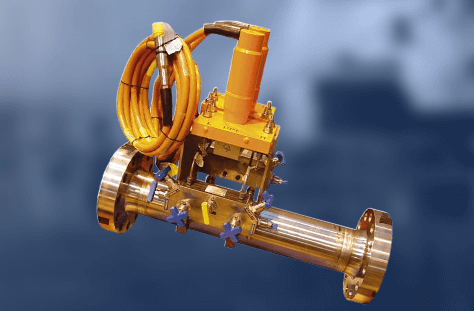

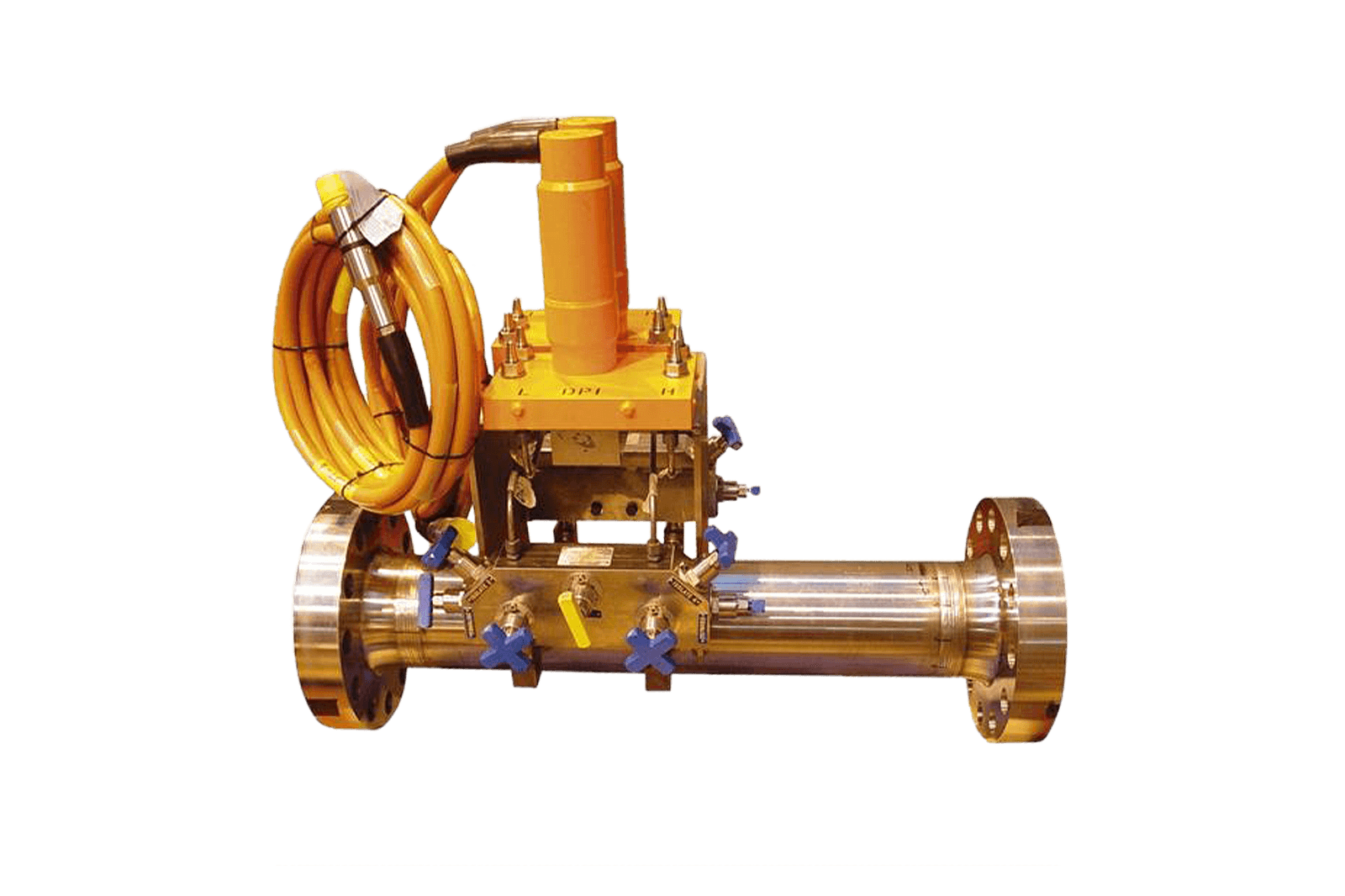

Subsea venturi assemblies.
Documentation
Data sheets & selection guide
Download the Selection & Practice Guide directly, or contact our sales team to request a Subsea Venturi Data Sheet. Our team will be in touch soon with a copy of the required information.
Need help specifying?
Need a DP flowmeter for your application? McMenon can size your flowmeter and provide a complete specification. Send us your requirements or speak with our team.
