Flow Measurement
FlowGenie
Accurately monitoring your emissions.
Overview
Purpose-built for flue and stack emissions monitoring.
The McMenon Emission FlowGenie is a flowmetering system designed specifically to monitor your flue and stack emissions.
With increased focus on accurately reporting these flowrates worldwide to curb greenhouse gas emissions, the Emission FlowGenie will help end users to meet their regulatory and legislative requirements.
With MCERTS and TUV approvals showing compliance with EN 14181 & EN 15267-3, the Emission FlowGenie has been proven to be fit for purpose for the flow measurement of stack and flue gases.
The McMenon Emission FlowGenie arrives on site fully configured based on your application details. Installation is quick and easy, requiring only one or maximum two holes for insertion into the process. And if that isn’t simple enough the staff at McMenon are always available to provide their specialist product knowledge.
Available Options
- Automatic purging systems
- Zero/span checks
- Flexible communication outputs
- Enclosure heater
Sizing & selection with McMenon Solve
Applications can be sized and customised using McMenon’s intuitive Solve software, which puts you in control of the design. The ultimate tool for DP flowmeter sizing and more, used on-line or off-line and available to download now.
Special Features
Approved, accurate, compensated.
- Accuracy of ±2% and ≤ 2% of measuring range
- MCERTS approved
- Continuous volume/mass flow and velocity
- Compensated for pressure and temperature
- Flow velocity up to 50 m/s (3 to 35 m/s for MCERTS approved systems)
- Maximum working temperature 900 °C (1652 °F). 1200 °C (2192 °F) is possible but with limited probe life
- Flanged connection fittings (single or end-supported) – supplied by McMenon or customer

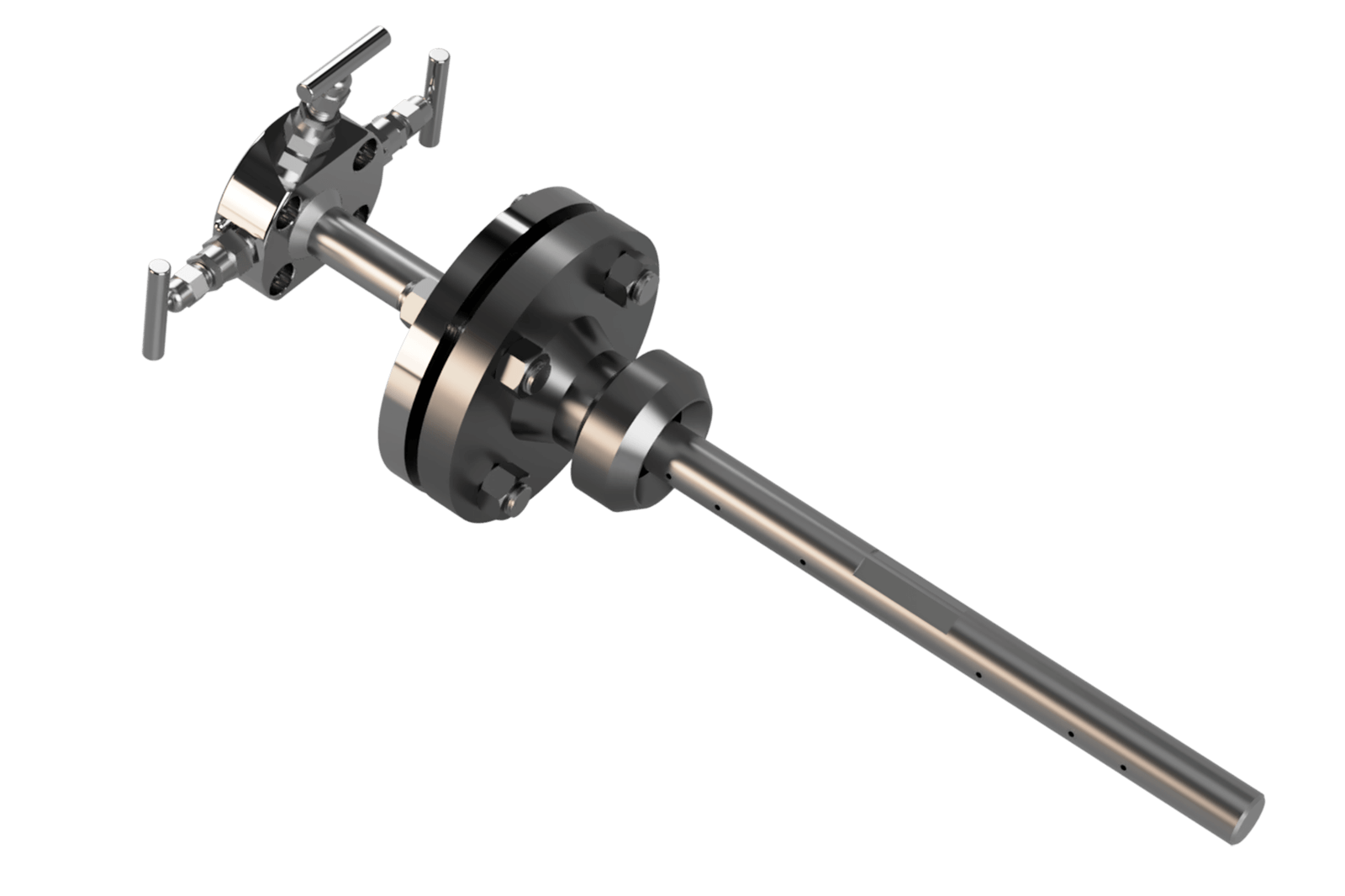

- Probe is Ø25 mm (1 in.) or 60 mm (2.36 in.); two-piece probe design for stack diameter >5m; bayonet-style lock within end support for large stacks at high temperatures (optional), available in a variety of materials
Applications
Where FlowGenie works.
- Stack, flue, chimneys
- Atmospheric monitoring
- Low pressure gases with dust
Pipeline Size Range
100 to 8000mm (4 to 24 in.)
Gallery

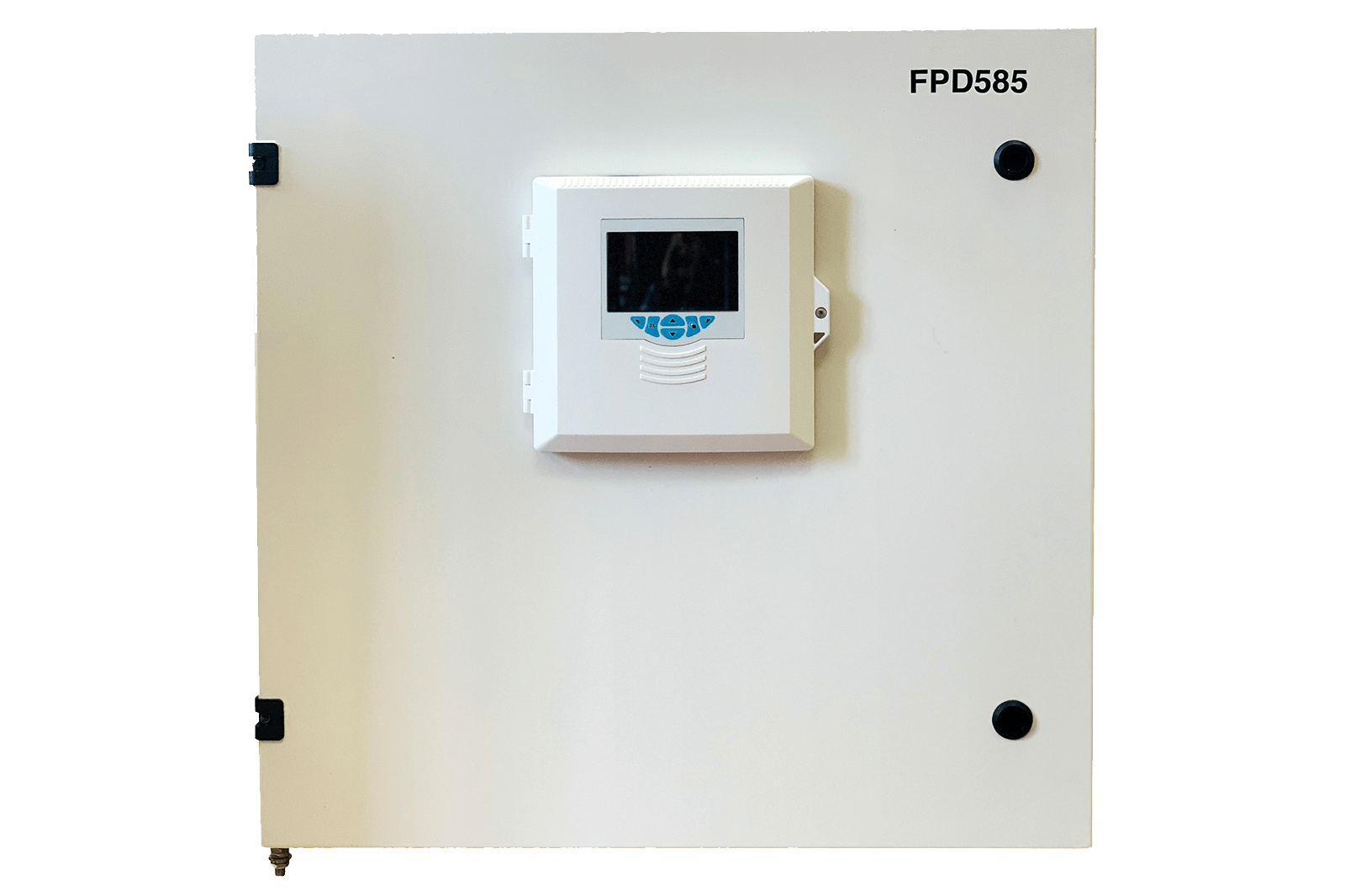

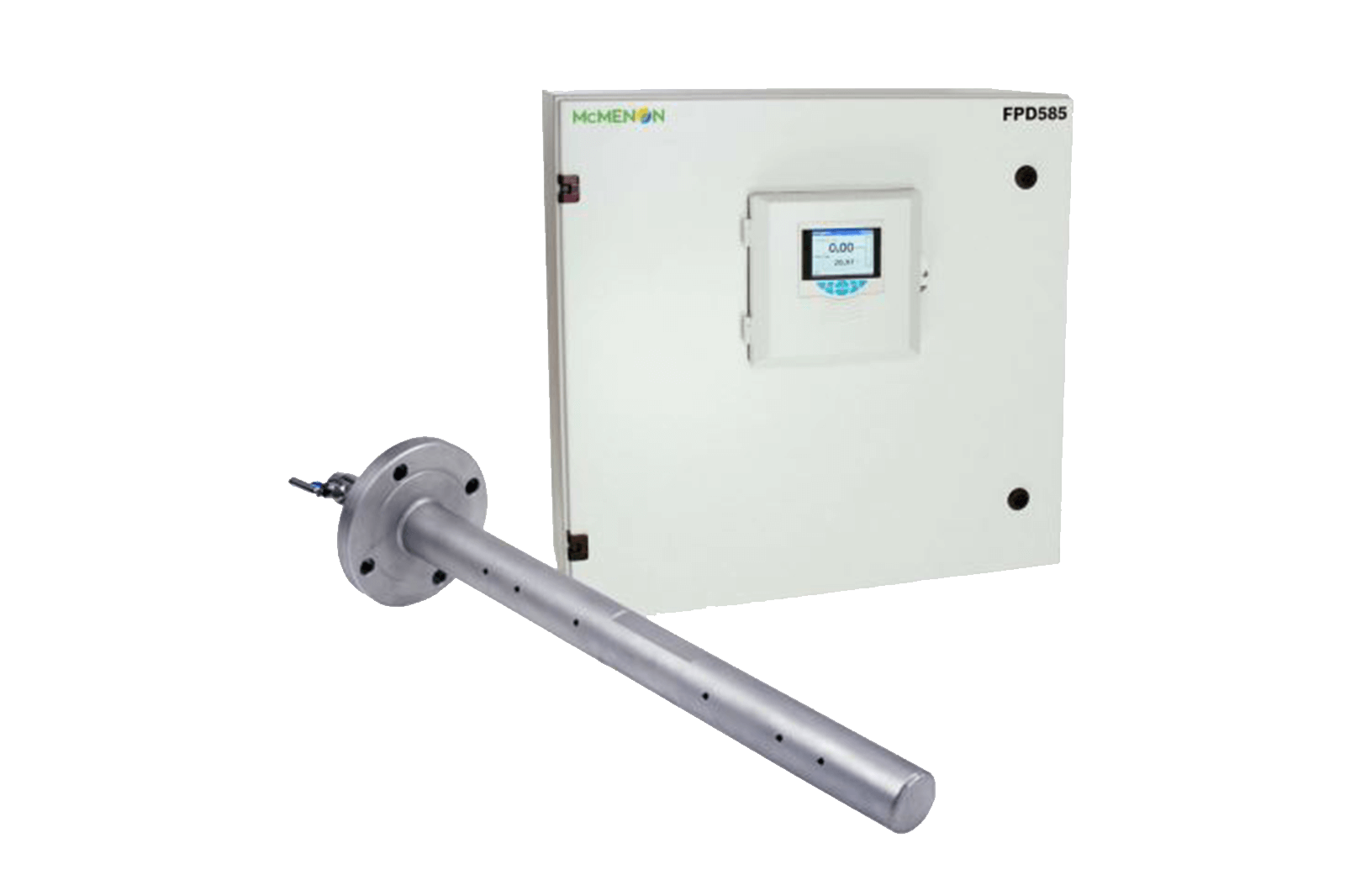

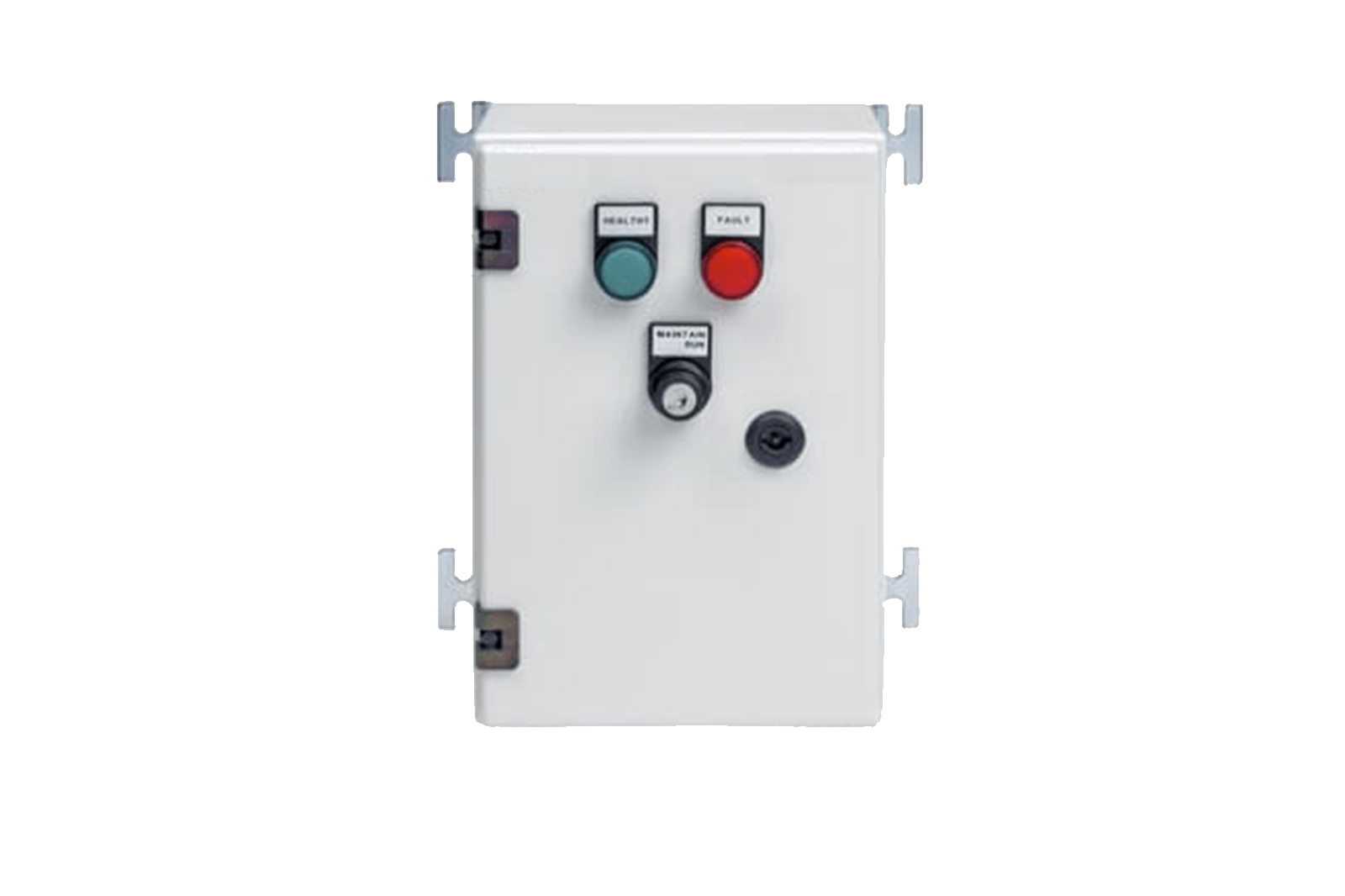

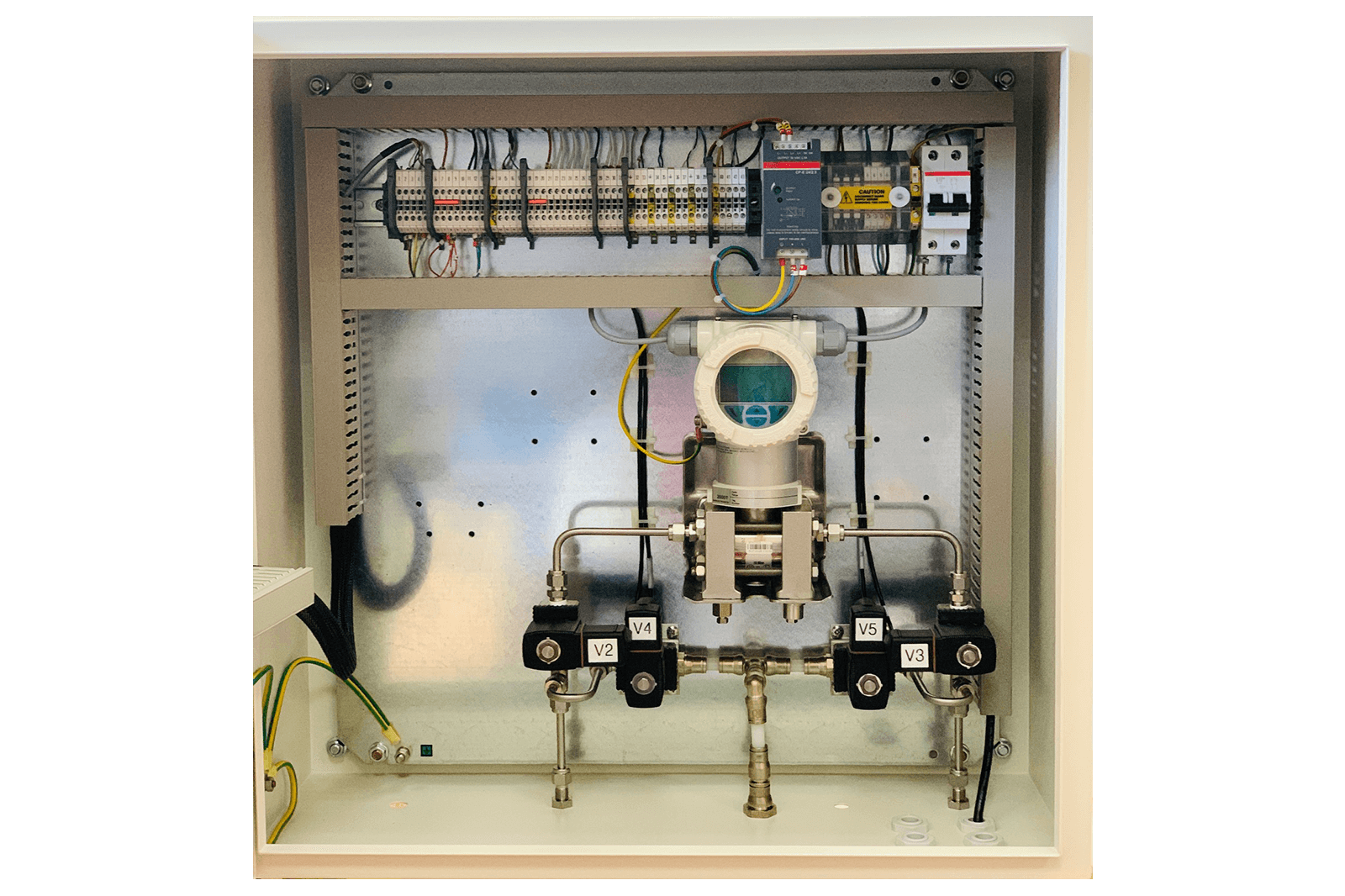

The FlowGenie system.
Documentation
Data sheets & selection guide
Download the FlowGenie data sheet and the Selection & Practice guide directly, or contact our sales team for help specifying what you need.
Need help specifying?
Need a DP flowmeter for your application? McMenon can size your flowmeter and provide a complete specification. Send us your requirements or speak with our team.
